Semi-flexible Portable Solar Panel Charger (Monocrystalline Cells)

Send Email Chat Now
NO SAMPLE Model Power output voltage output current Folding Size Expand Size Net Weight
1   ZX5-3 5W 5V 1000mA 200*115*35mm 445*200mm 350g
2   ZX6-3 6W 5V 1200mA 135*115*36mm 430*135mm 350g
3   ZX6-4 6W 5V 1200mA 180*110*40mm 530*180mm 350g
4   ZX12-2-4 12W 5V 2400mA 180*120*50mm 670*365mm 550g
5   ZX15-4-2 15W 5V 3000mA 235*120*50mm 670*470mm 850g
6   ZX36-3-2 36W 18V 2000mA 315*205*50mm 745*627mm 2150g
7   ZX36-4 36W 18V 2000mA 450*210*35mm 965*450mm 1700g
8   ZX60-4 60W 18V 3300mA 480*305*35mm 1365*480mm 2550g
9   ZX144-9-2 144W 18V 8000mA 375*375*60mm 1850*750mm 7150g
10   ZX-5 5W 18V 270mA / 360*180mm 350g
11   ZX-10 10W 18V 550mA / 375*335mm 600g
12   ZX-20 20W 18V 1100mA / 550*390mm 1250g
13   ZX-36 36W 18V 2000mA / 685*495mm 1700g
14   ZX-100 100W 18V 5500mA / 1000*800mm 4050g
15   ZX-180 180W 18V 10000mA / 1420*1065mm 7700g

Sample Color Accessories Charging object

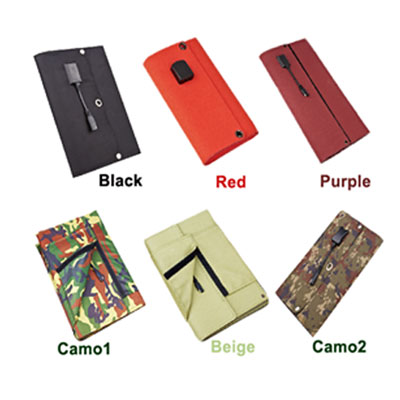

  black/red/blue/purple/beige/2camouflage or customized 1.Battery clamps; 2.12V-24V Car charger plug; 3.DC barrel plug; Water proof Y-connector with converters cables can charge IHPONE,IPAD,Mobile phone,MP3,MP4 and all kinds of small digital products,portable power; To charge low-power test equipments,Radio,Communication equipments,walk-talkies,Etc.
Solar Panel Charger Information:
Laminated with Aluminium + ETFE + Silicon cell + EVA + Tedlar
Solar cells: Monocrystalline / CIGS cells

ZXSOLAR photovoltaic cell utilizes unique triple-junction technology: blue, green and red lights of the solar spectrum are absorbed in different layers of the cell, yielding unprecedented performance. This light spectrum splitting capability is the key to higher efficiency, especially at lower insolation levels and in diffused light environment. You can enjoy the sunbathing with it on your swimming pool or the beach without worrying about your device wet.

Two New High Efficiency Solar Panel Chargers (off grid power):

Solar Panel Charger Made by Monocrystalline cells Made by CIGS cells
Technology Semi flexible
Flexible
Laminated structure Aluminium + ETFE + Mono Silicon cell + EVA/POE + Tedlar Aluminium + ETFE + CIGS Silicon cell + EVA/POE + Tedlar
Silicon cell technology Absorbing visible light spectrum (red) light waves Multilayer solar-chip technology: absorb sunlight in the red, blue, green spectrum
Charging object Water proof Y-connector or USB standard Charging outputs (up to 10000mA max 18V DC) Water proof Y-connector or USB standard Charging outputs (up to 4200mA max 18V DC)
Design Text-book sized, slim folded but heavier Text-book sized, slim folded and light weight
Other features waterproof and weather-resistant durability waterproof and weather-resistant durability
ZXSOLAR use only premium battery cells, together with superior materials and cutting-edge technology, to ensure complete safety.

ANY Sun Exposure: Energy saving & Collect your sunshine throughout the year. No matter brightness in strong or weak, in sunny or cloudy.

All two kind of panel charger uses a more expensive material (imported from Japan) called ETFE (Ethylene Tetra fluoro ethylene) versus PET (Polyethylene terephthalate). The ETFE film layer absorbs light better with less reflection leading to more power per square inch. The ETFE material bonded with the aluminium back sheet makes a stronger panel than a cheaper PET film one with less chance of cracking or water intrusion.

Highly stain-resistant and easily gets cleaned by the rain.

Highly resistant to seawater corrosion, waterproof and highly resistant to the harsh operating conditions of a marine environment.
